Directional Tile

Equaltile has set the industry standard for way-finding surfaces for over two decades. We understand and cater to the specific needs for Directional Bar and Guide Surface Tiles, which guide pedestrians across and around roadways, transit platforms, curb ramps, and other walking surfaces. These ADA-compliant, slip-resistant tactile way-finding surface tiles are suitable for both new and existing concrete substrates.

When correctly installed, our tactile way-finding tiles provide clear and easy-to-follow guidance for the visually impaired and other pedestrians navigating areas where the proper walking path may not be readily apparent.

(Custom colors available upon request)

About Equaltile Solutions’ ADA Directional Way-Finding Surfaces

Our Directional Way-Finding is achieved through the use of Directional Bar Tiles in combination with Detectable Warning Surfaces (Truncated Domes). The Directional Bars provide pathway guidance, while the Detectable Warning Surface indicates a decision point along the path. These tactile way-finding surfaces are made from exceptionally durable, UV-stable, exterior-grade homogenous glass/carbon/fiberglass-reinforced composite materials. Choose from five in-stock colors: Brick Red, Federal Yellow, Dark Gray, White, and Black.

All our detectable warning surfaces offer a high degree of weather and wear resistance and are guaranteed against breakage and deformation for five years after contract completion.

Available Dimensions:

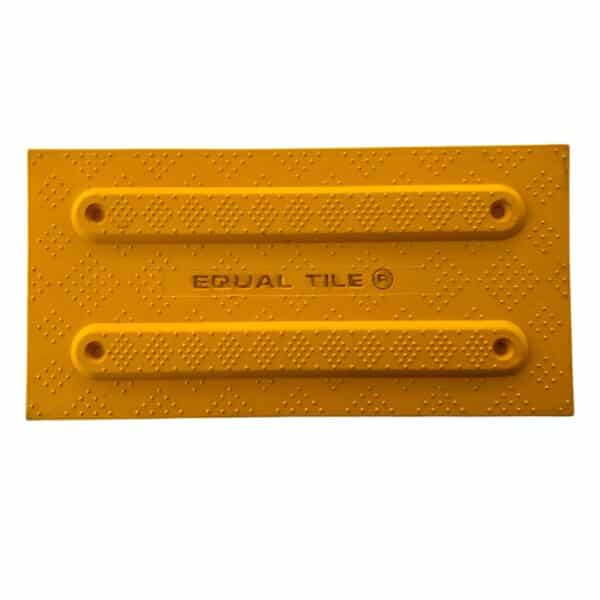

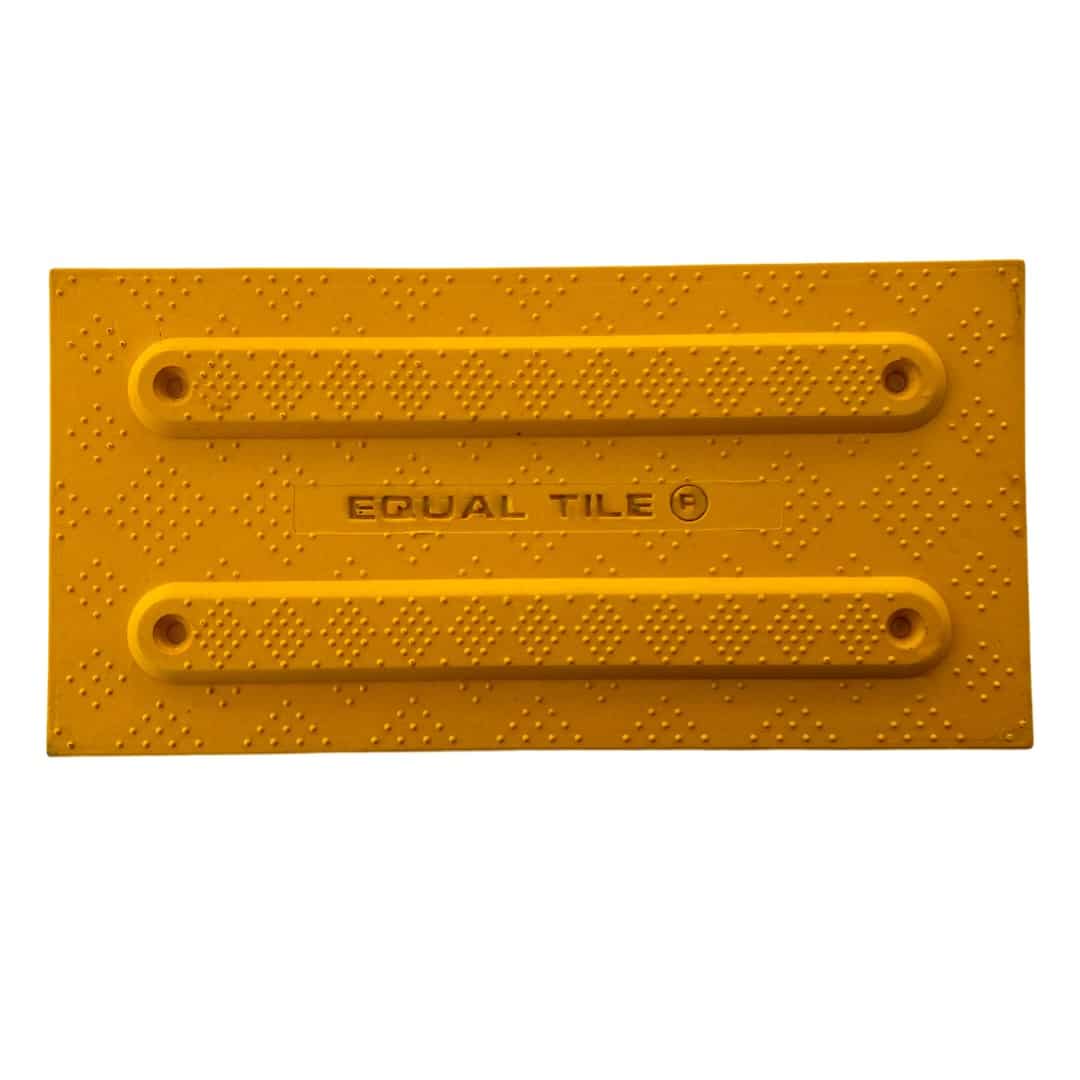

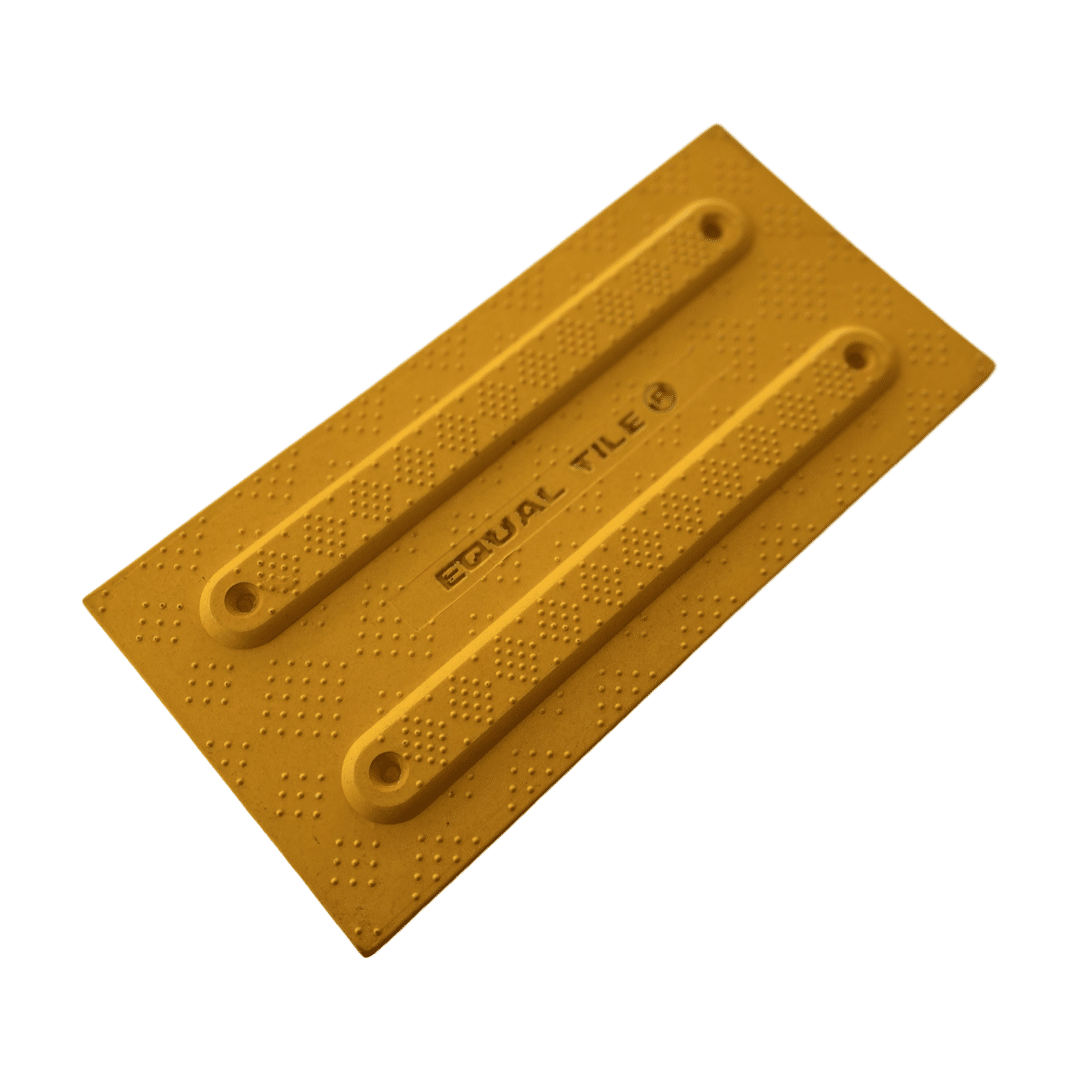

  • Directional bar tile: 6” x 24”, 6” x 48”, 12” x 12”, 12” x 24”, 24” x 24”, 40 cm x 40 cm

All Tactile Warning System tiles from Equaltile are designed for installation on concrete substrates. We do not recommend or warranty installation on asphalt. For alternate solutions, please contact us directly, and our knowledgeable sales staff will be happy to assist you.

These tactile paving solutions comply with the requirements of PROWAG, ADAAG, and California Title 24, as well as those specified in Division of the State Architect (California) IR 11B-3 (1/26/05) and IR 11B-4 (1/01/11). See the links at the bottom of this page for additional product specifications.

Tamper-Resistant hardware is available upon request.

Replacable Directional Directional Tile

REPLACEABLE DIRECTIONAL BAR TILE 6X12

REPLACEABLE DIRECTIONAL BAR TILE 6X24

REPLACEABLE DIRECTIONAL BAR TILE 6X48

REPLACEABLE DIRECTIONAL BAR TILE 12X12

REPLACEABLE DIRECTIONAL BAR TILE 12X24

REPLACEABLE DIRECTIONAL BAR TILE 24X24

Surface Mount Directional Bar Tile

SURFACE MOUNT DIRECTIONAL BAR TILE 6X12

SURFACE MOUNT DIRECTIONAL BAR TILE 6X24

SURFACE MOUNT DIRECTIONAL BAR TILE 6X48

SURFACE MOUNT DIRECTIONAL BAR TILE 12X12

SURFACE MOUNT DIRECTIONAL BAR TILE 12X24

SURFACE MOUNT DIRECTIONAL BAR TILE 24X24
