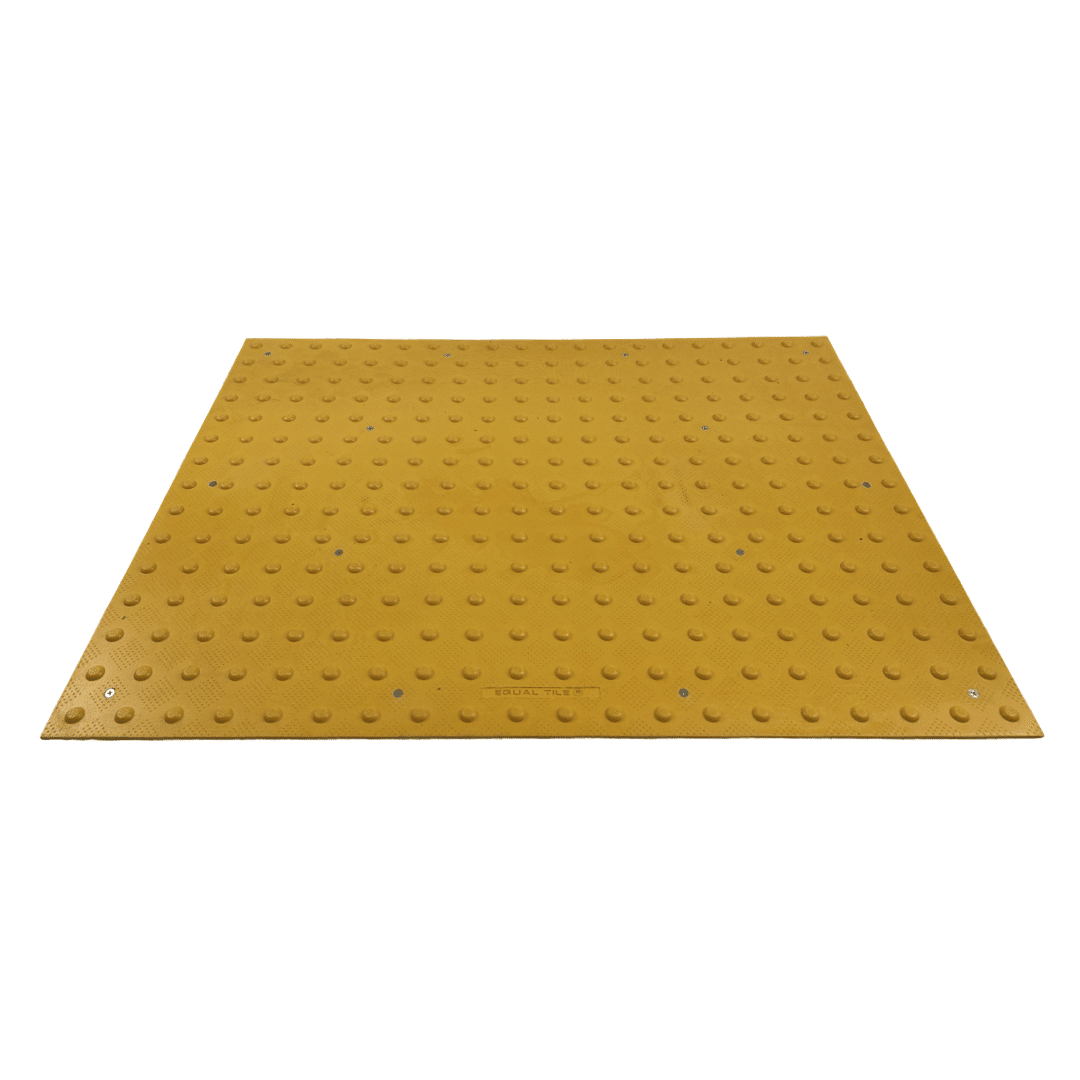

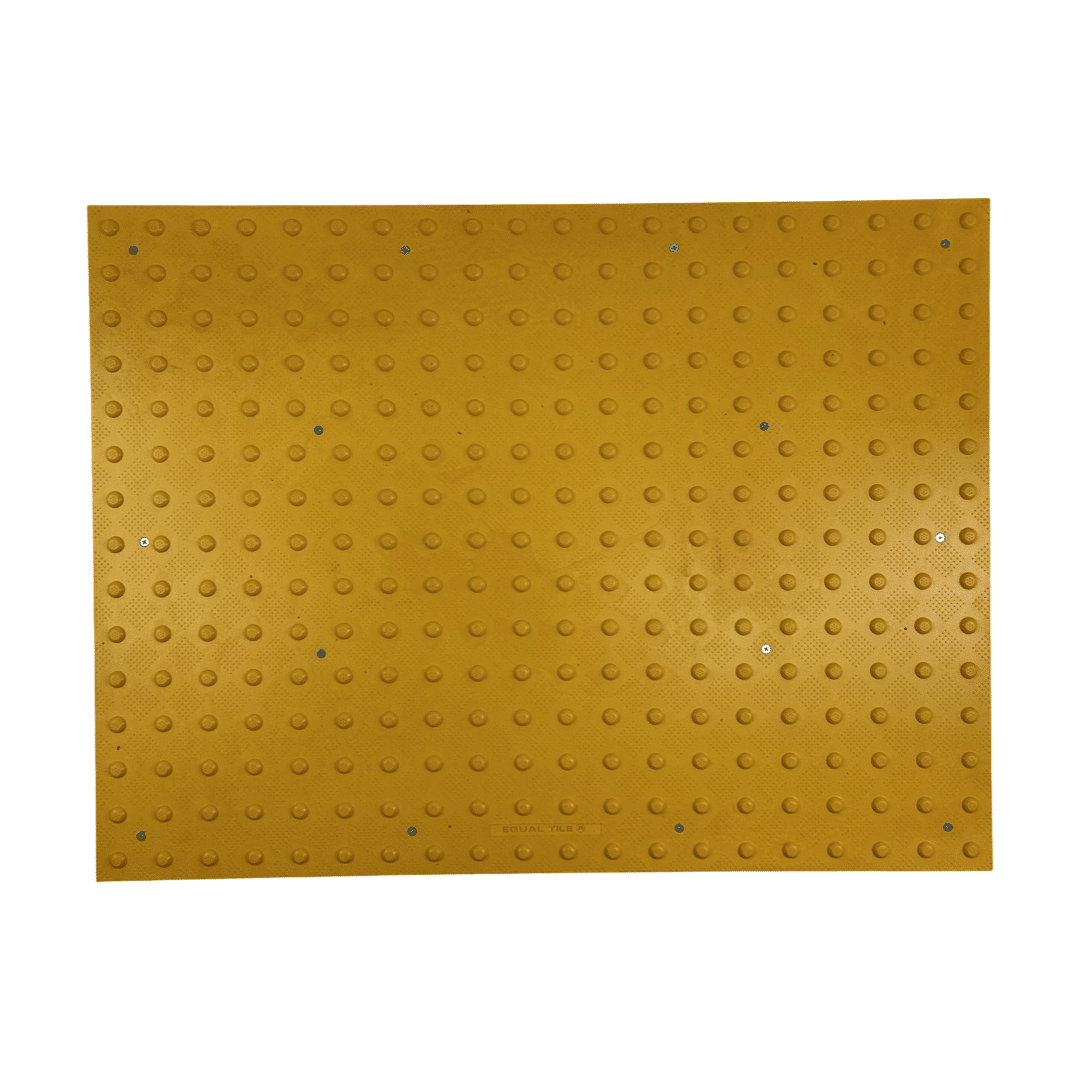

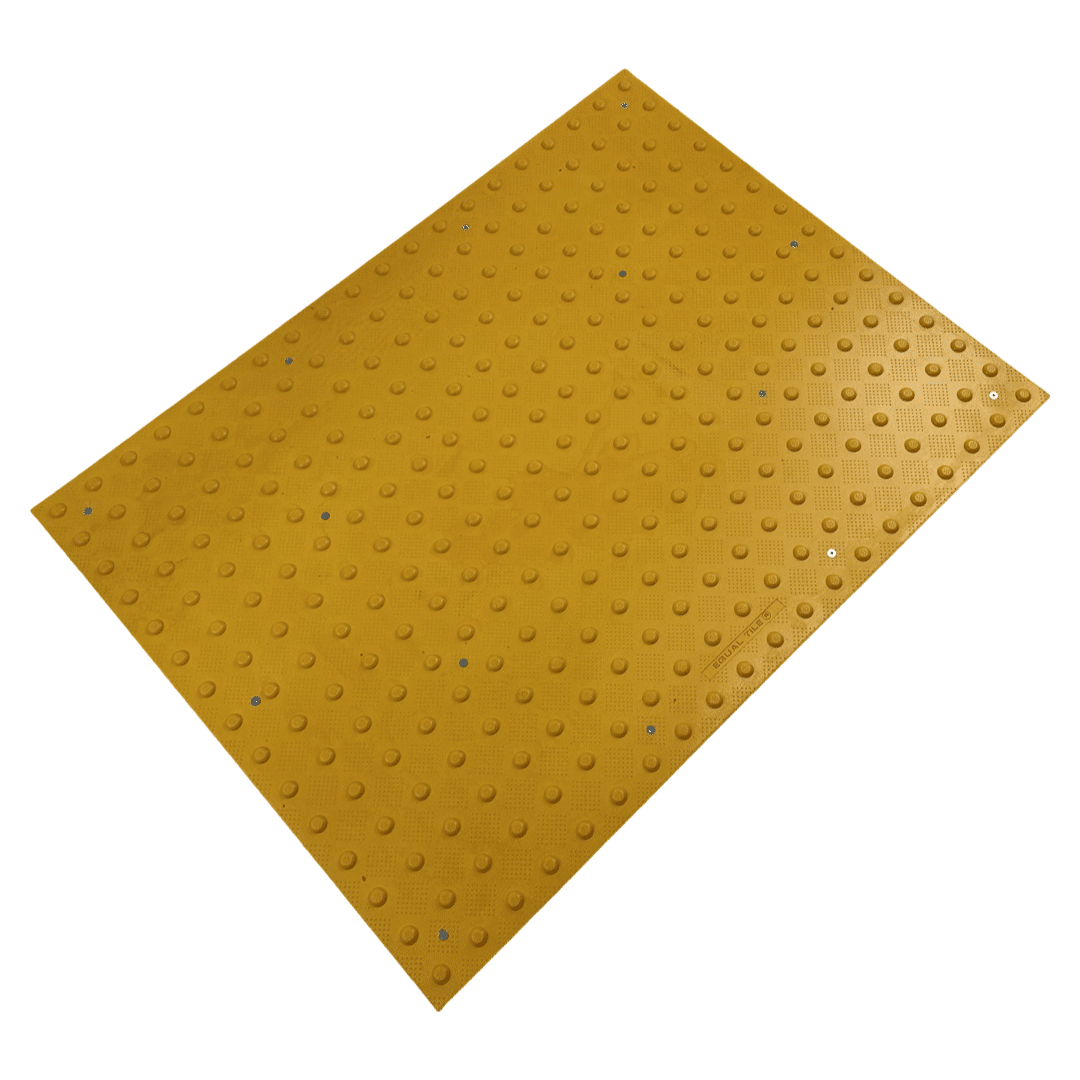

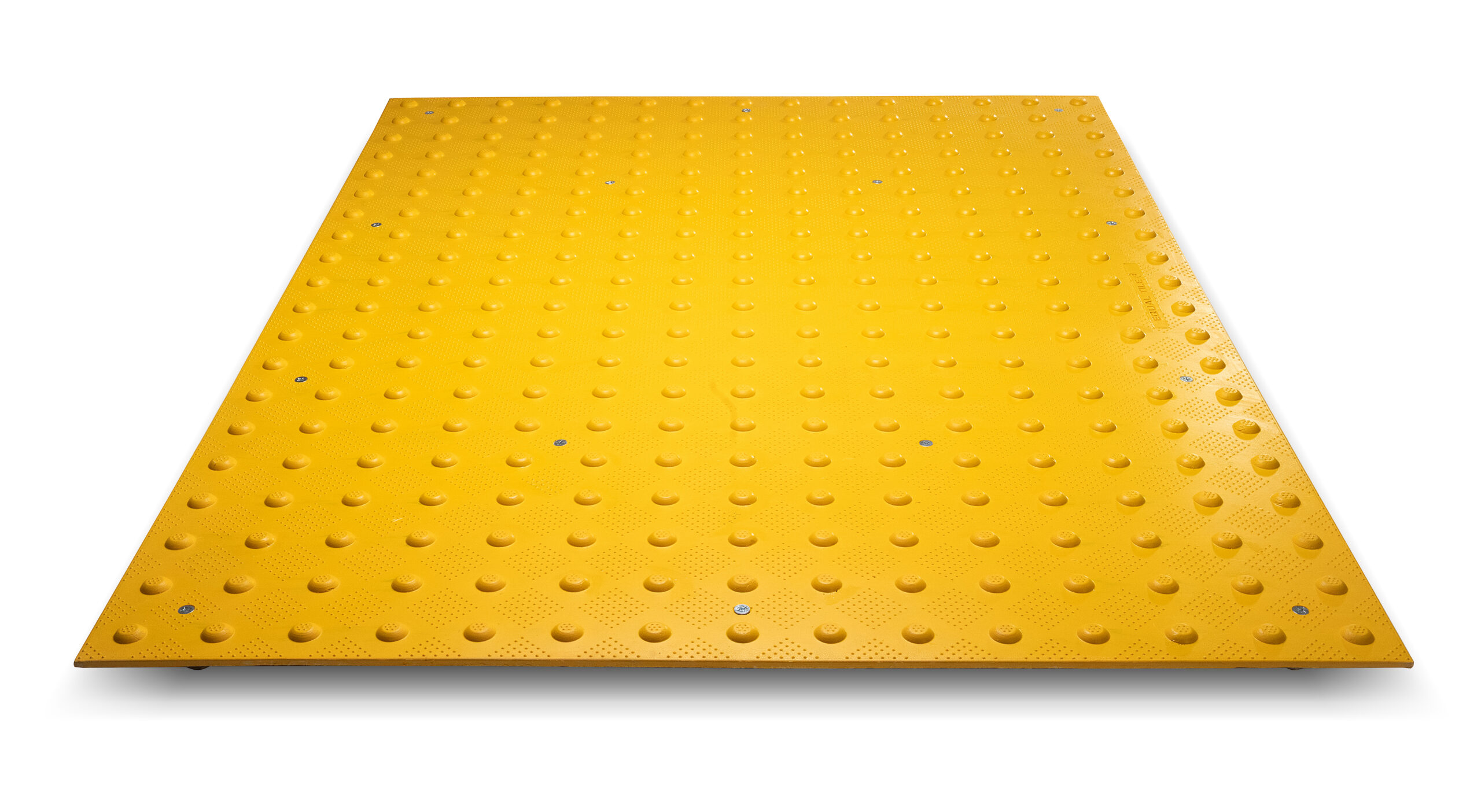

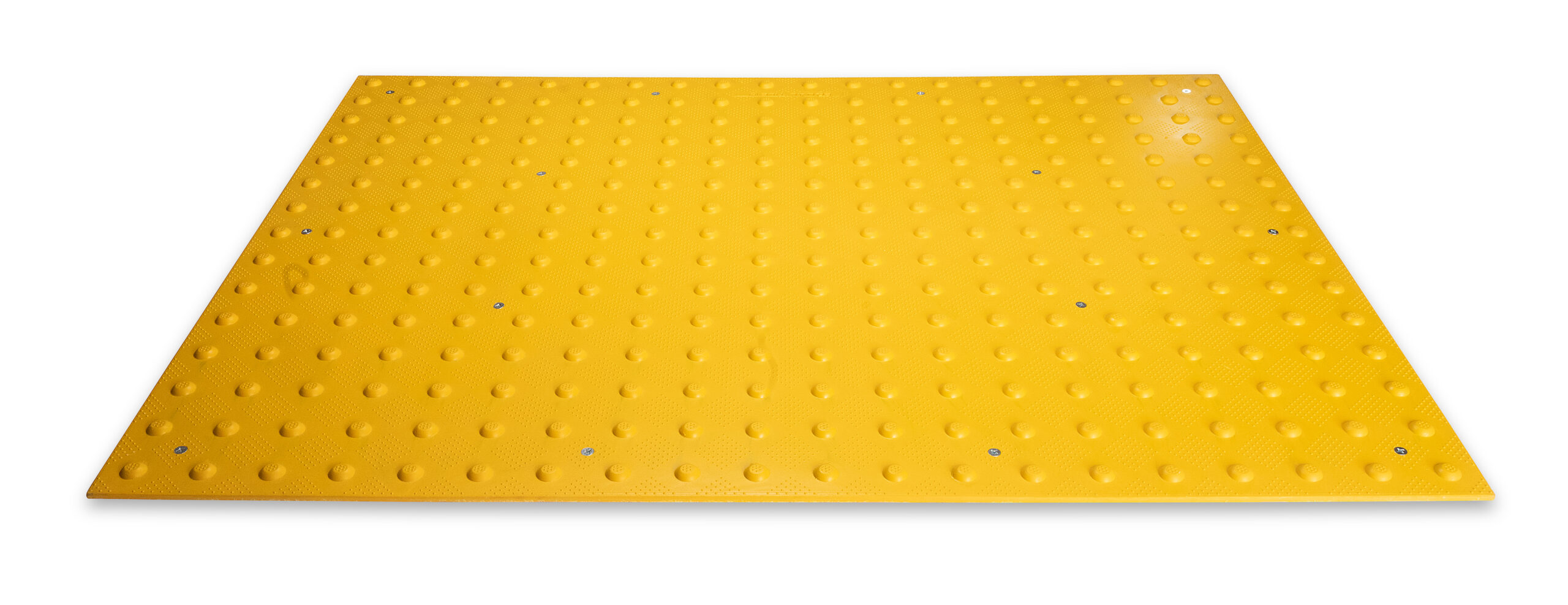

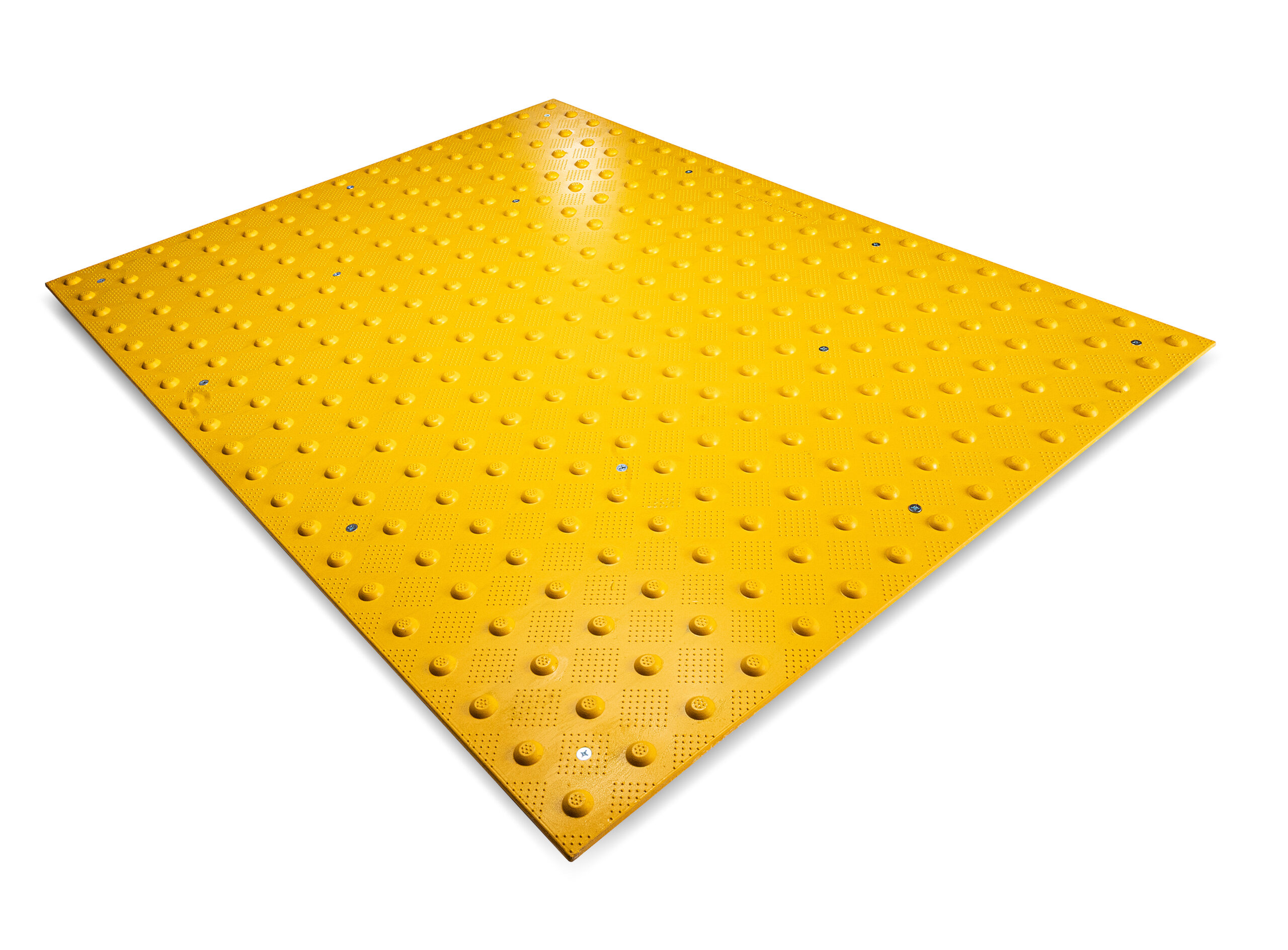

Cast in Place (Replaceable)

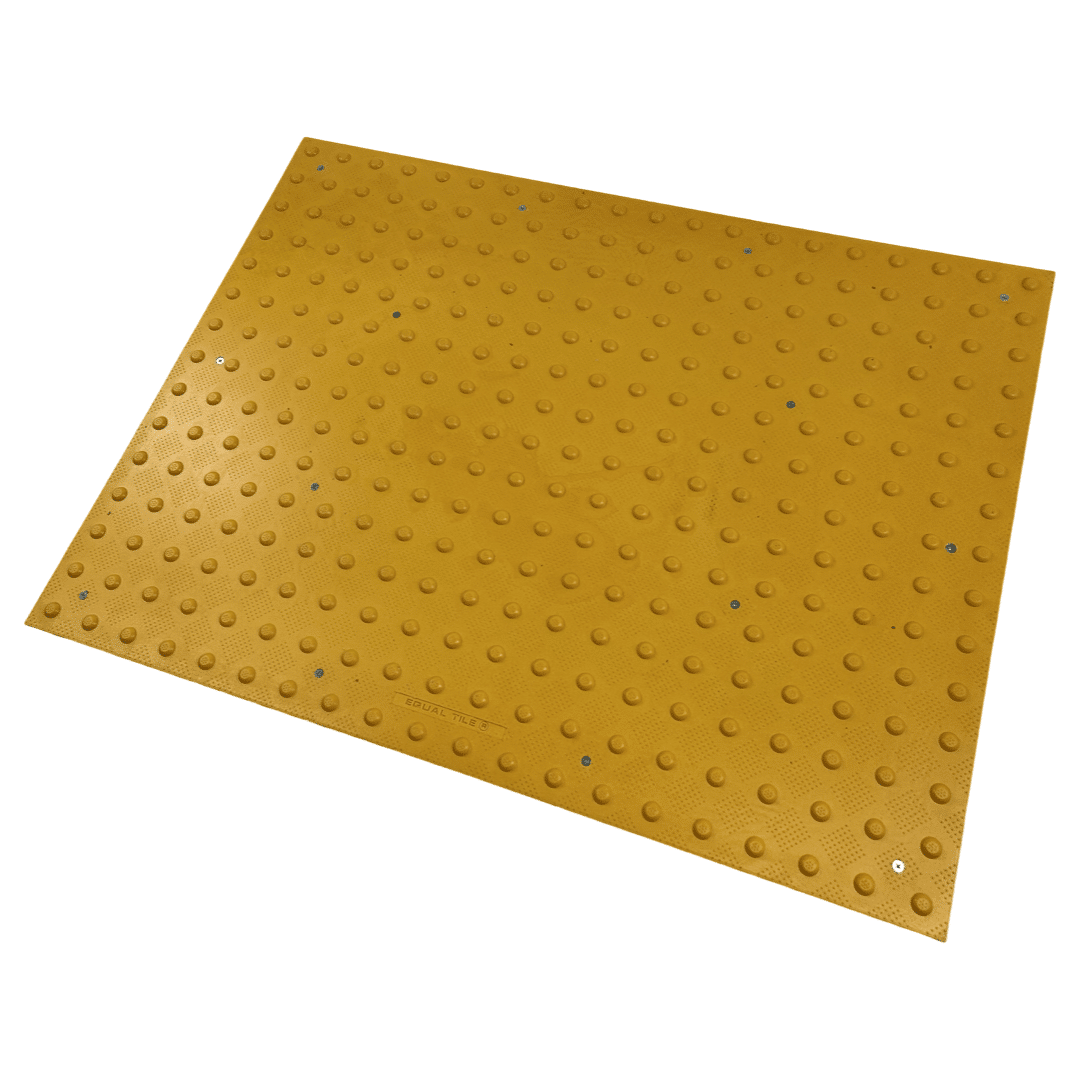

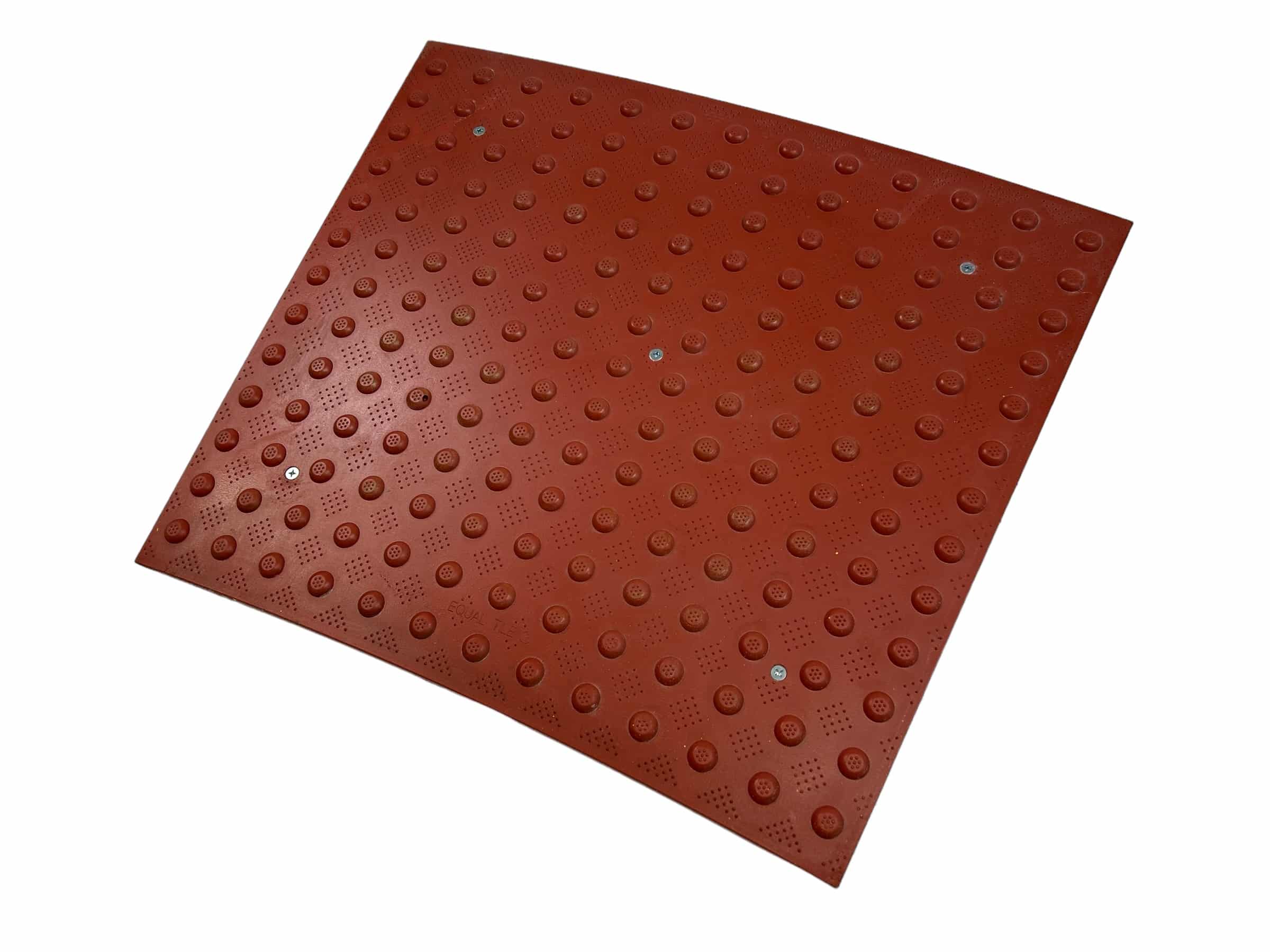

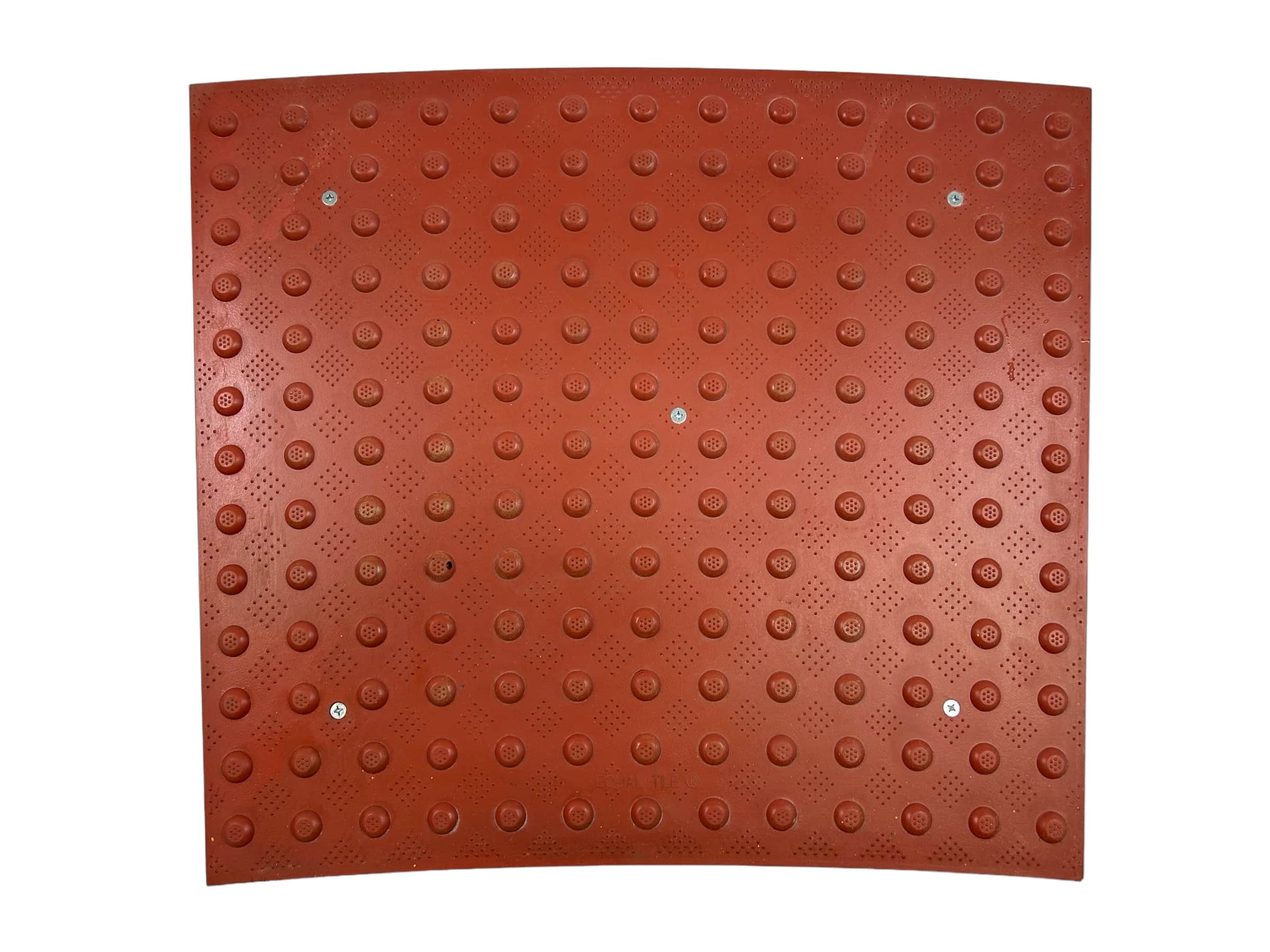

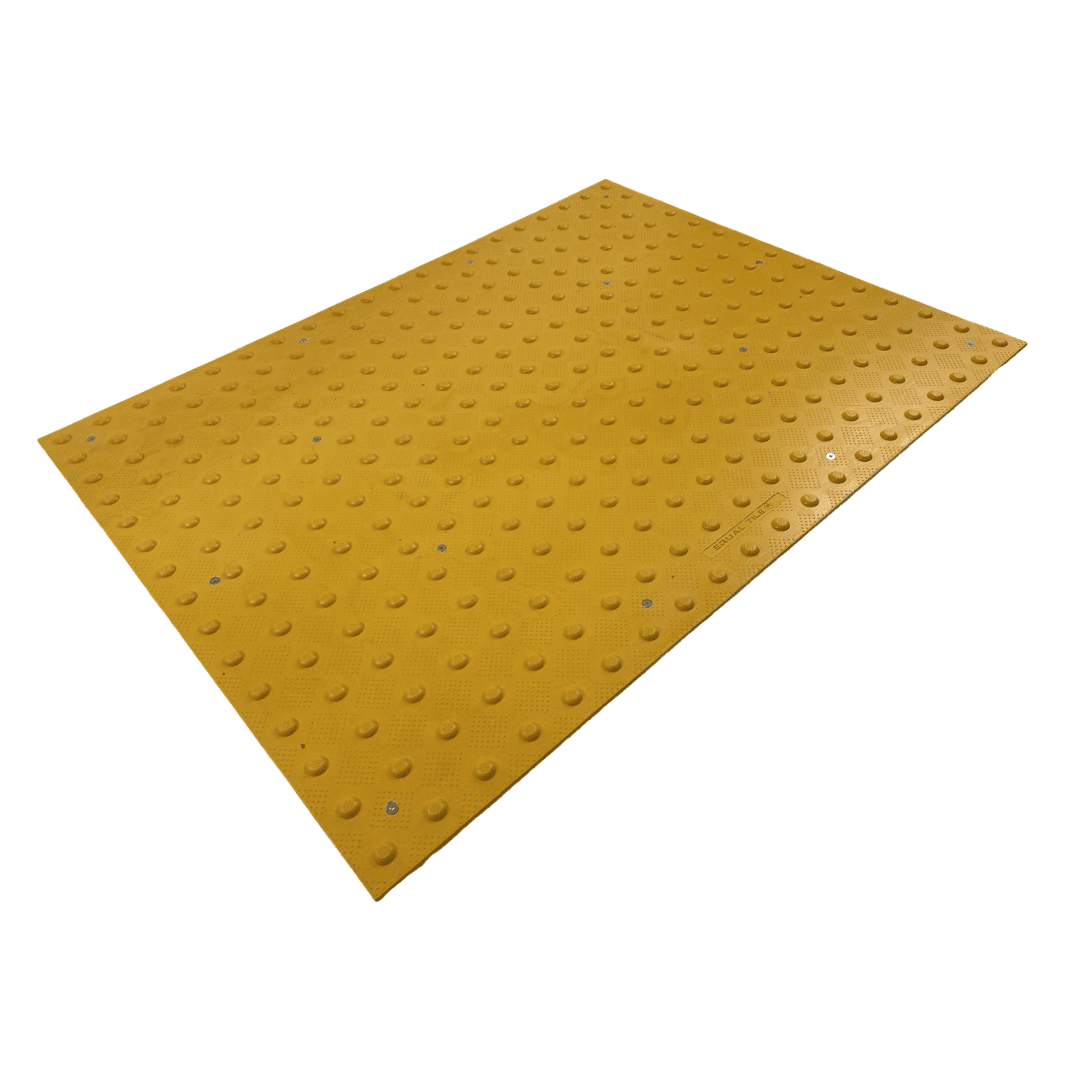

The Cast-in-Place Paver panel is an excellent long-term solution for any project or climate. Each Equaltile paver is crafted from a durable, homogenous glass, carbon, and fiberglass-reinforced composite material. The thick, heavy panel and sturdy embedment ribs ensure a strong bond and superior structural support.

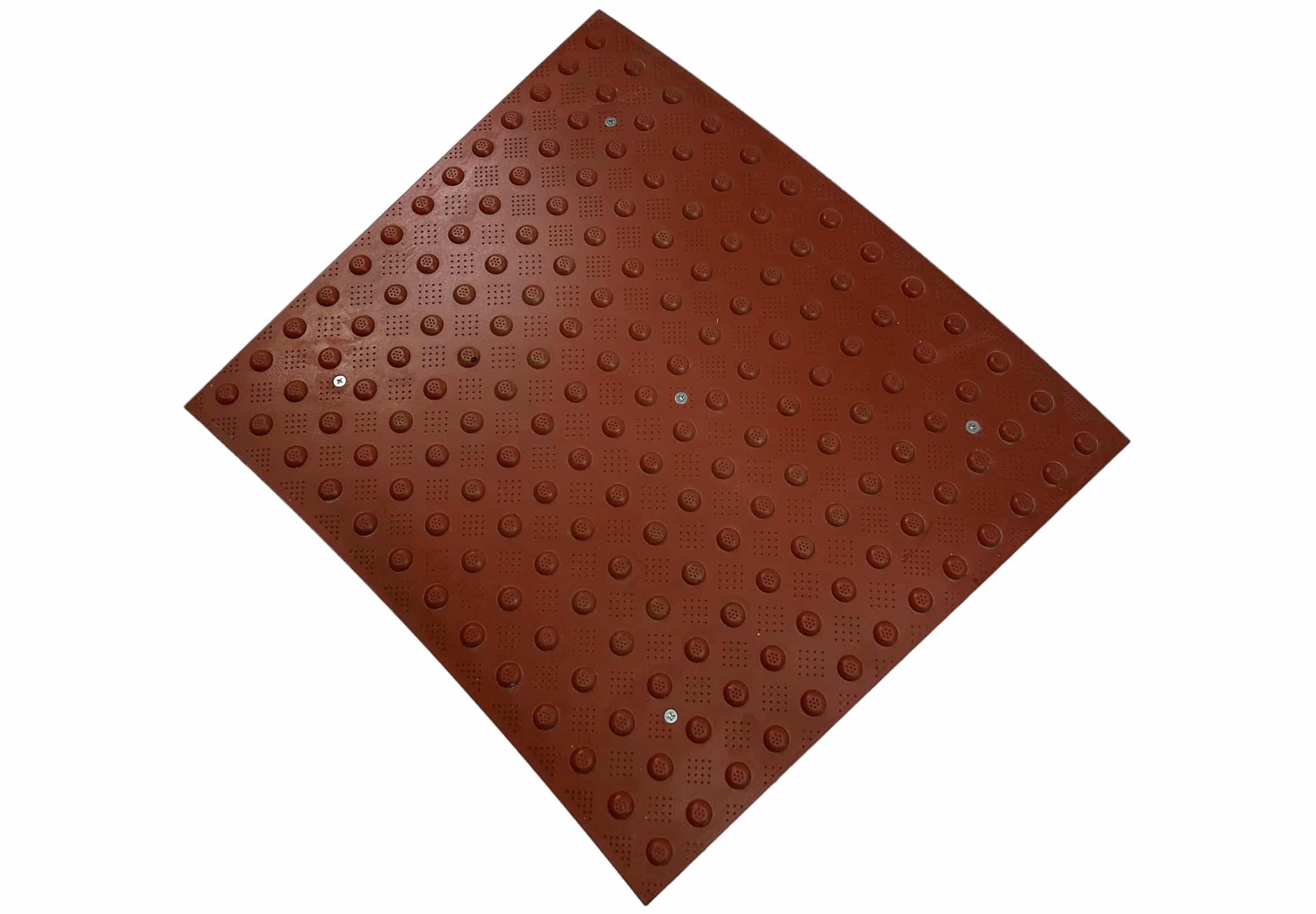

Our truncated dome cast-in-place paver detectable warning surface is available in a variety of approved colors. Choose from: (Custom colors available upon request)

(Custom colors available upon request)

Key features of each Cast-in-Place Paver panel include:

  • ¼” thickness with embedded 3” ribs, providing a tactile surface along the center
  • Suitable for installation in newly built curb ramps or construction sites
  • Pressed into freshly poured concrete for a fully secure fit
  • Protected by plastic sheeting across the entire surface
  • Available in 5 standard sizes: 24” x 36”, 24” x 48”, 24” x 60”, 36” x 48”, and 36” x 60”

Features and Advantages:

  • Raised truncated domes with a nominal diameter of 0.9” and a height of 0.2”
  • Body thickness of 0.25”, not including truncated domes
  • Does not rely on any type of paint coating to achieve color stability

Equaltiles’ Cast-in-Place Paver Tactile Surface products provide long-term durability. Ideal for new construction and modified curb ramps, these truncated dome pavers withstand any weather conditions and tolerate significant wear and tear. The homogenous glass and carbon composite material is colorfast and UV stable, while integrated fiberglass truncated domes ensure a more durable tactile surface.

Product Specification

CIP Installation Instructions

CAST-IN-PLACE (WET SET)

CIP 2X2 PDF

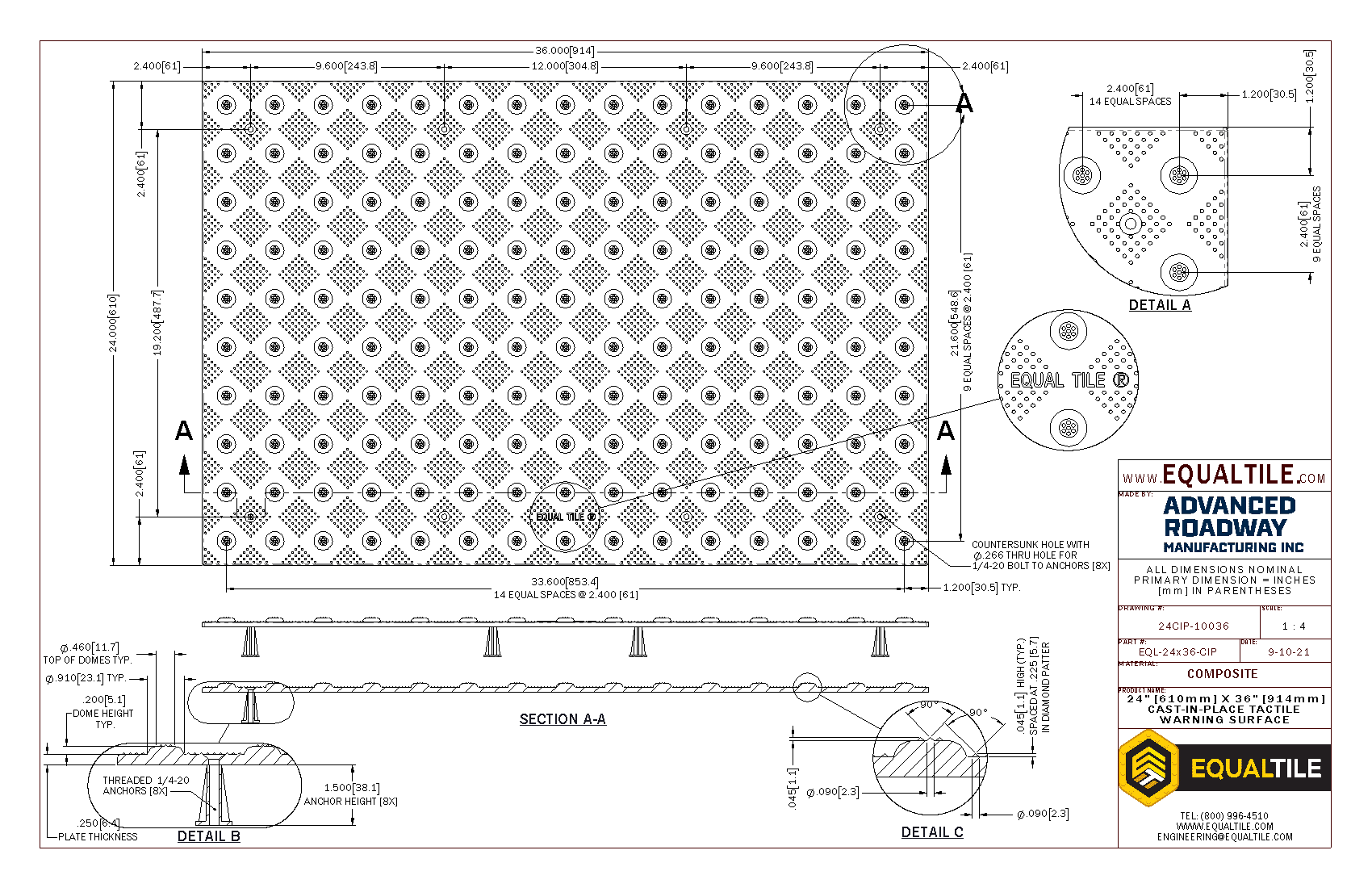

CIP 2X3 PDF

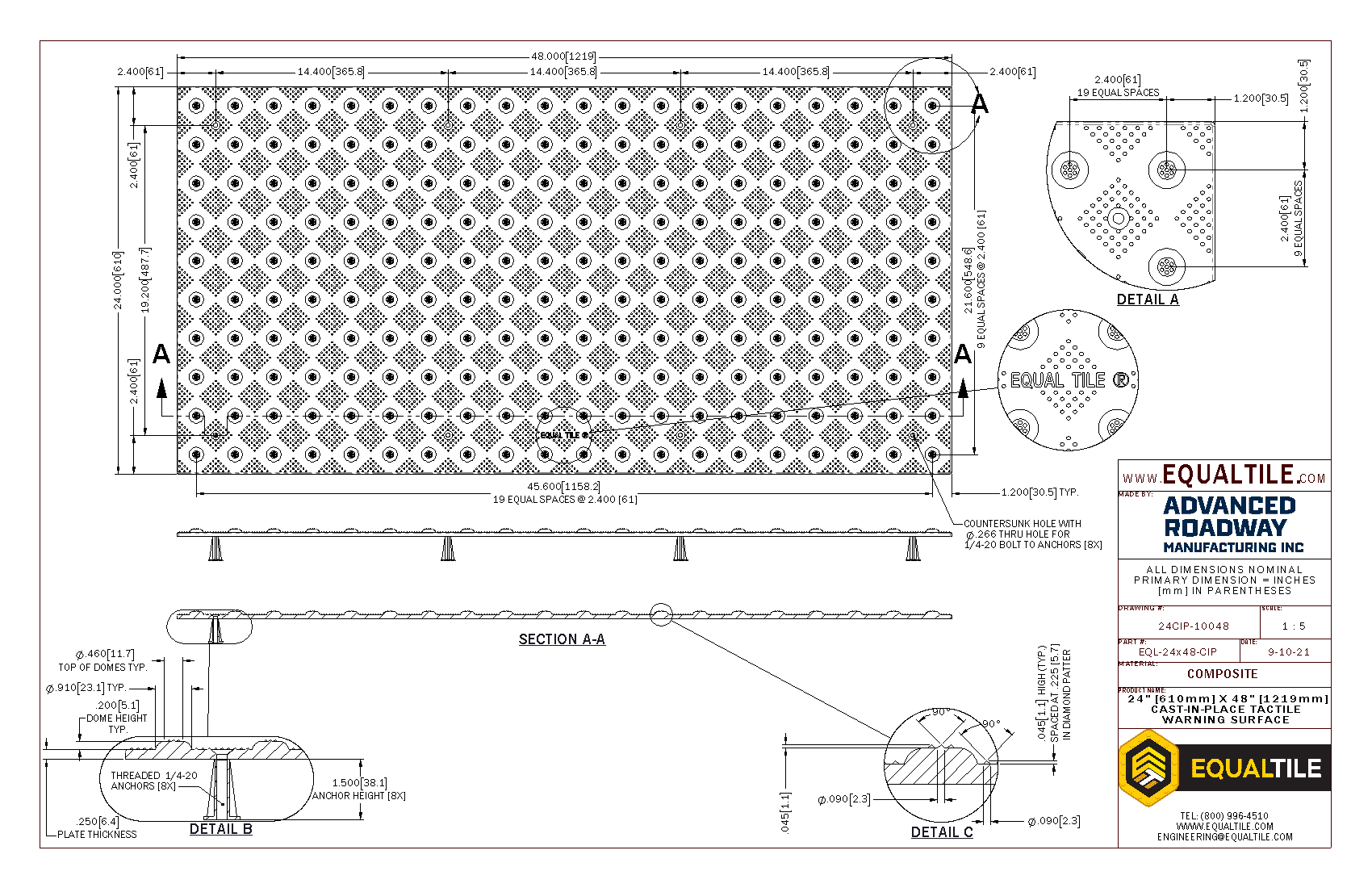

CIP 2X4 PDF

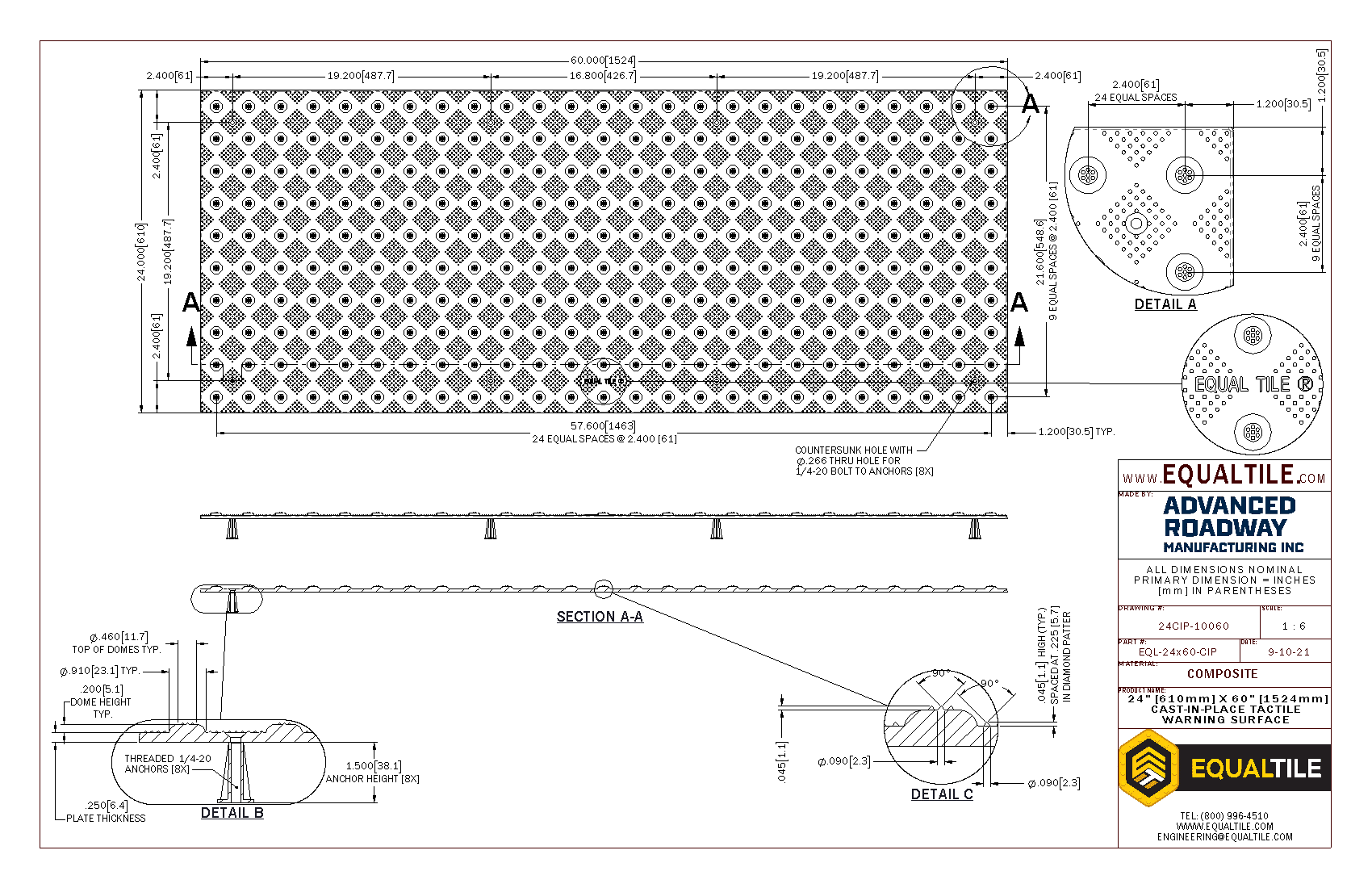

CIP 2X5 PDF

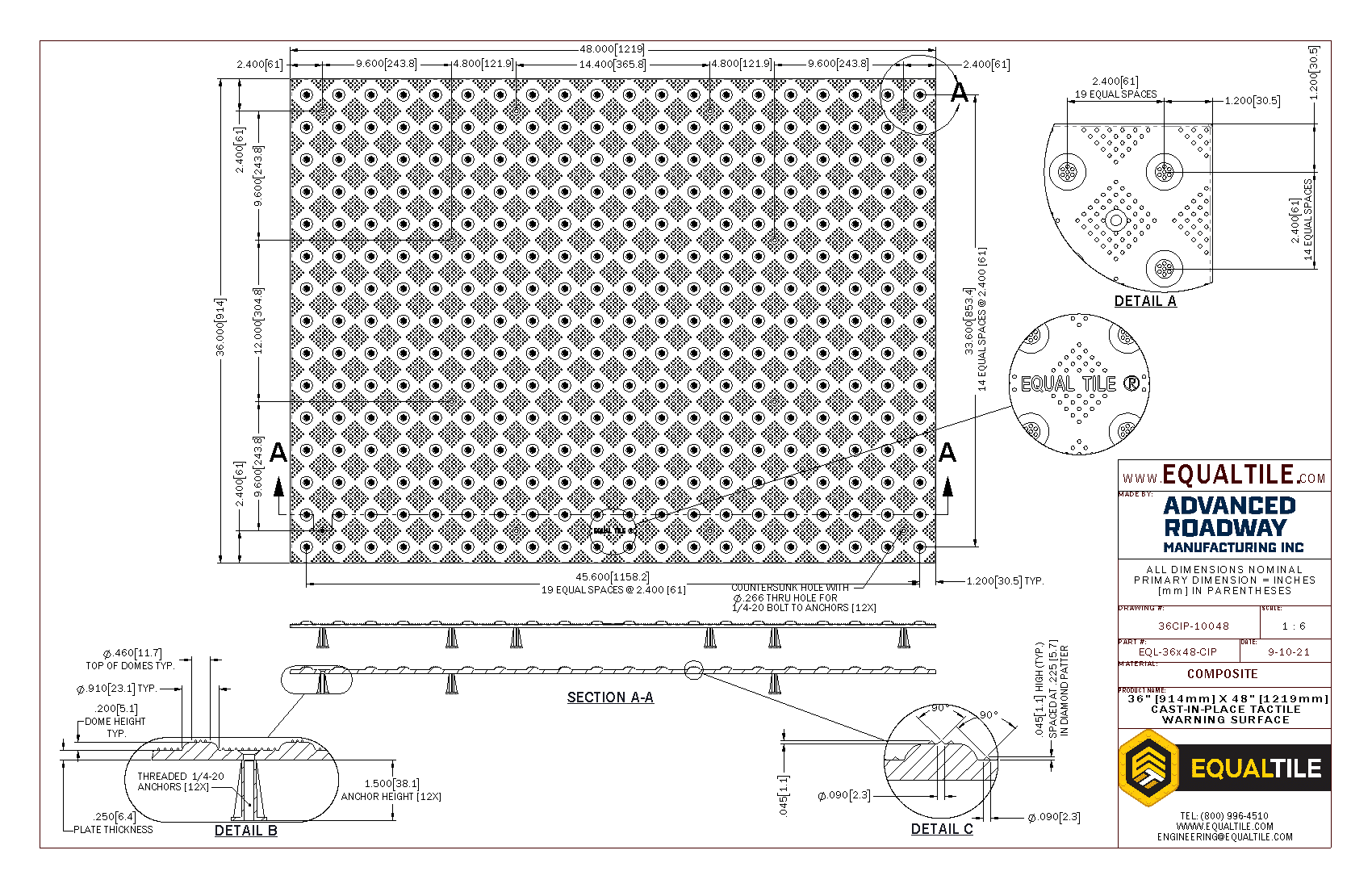

CIP 3X4 PDF

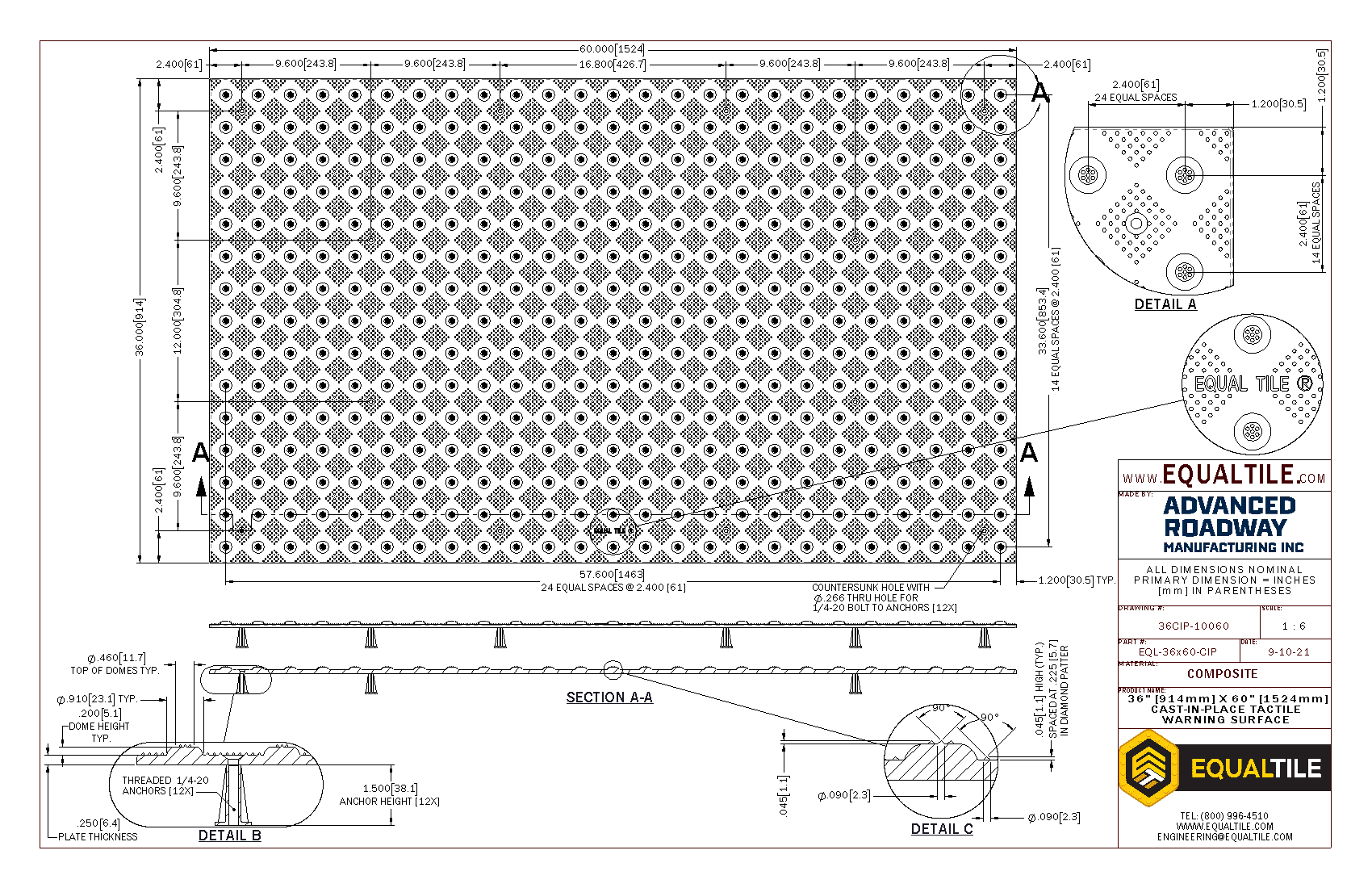

CIP 3X5 PDF
