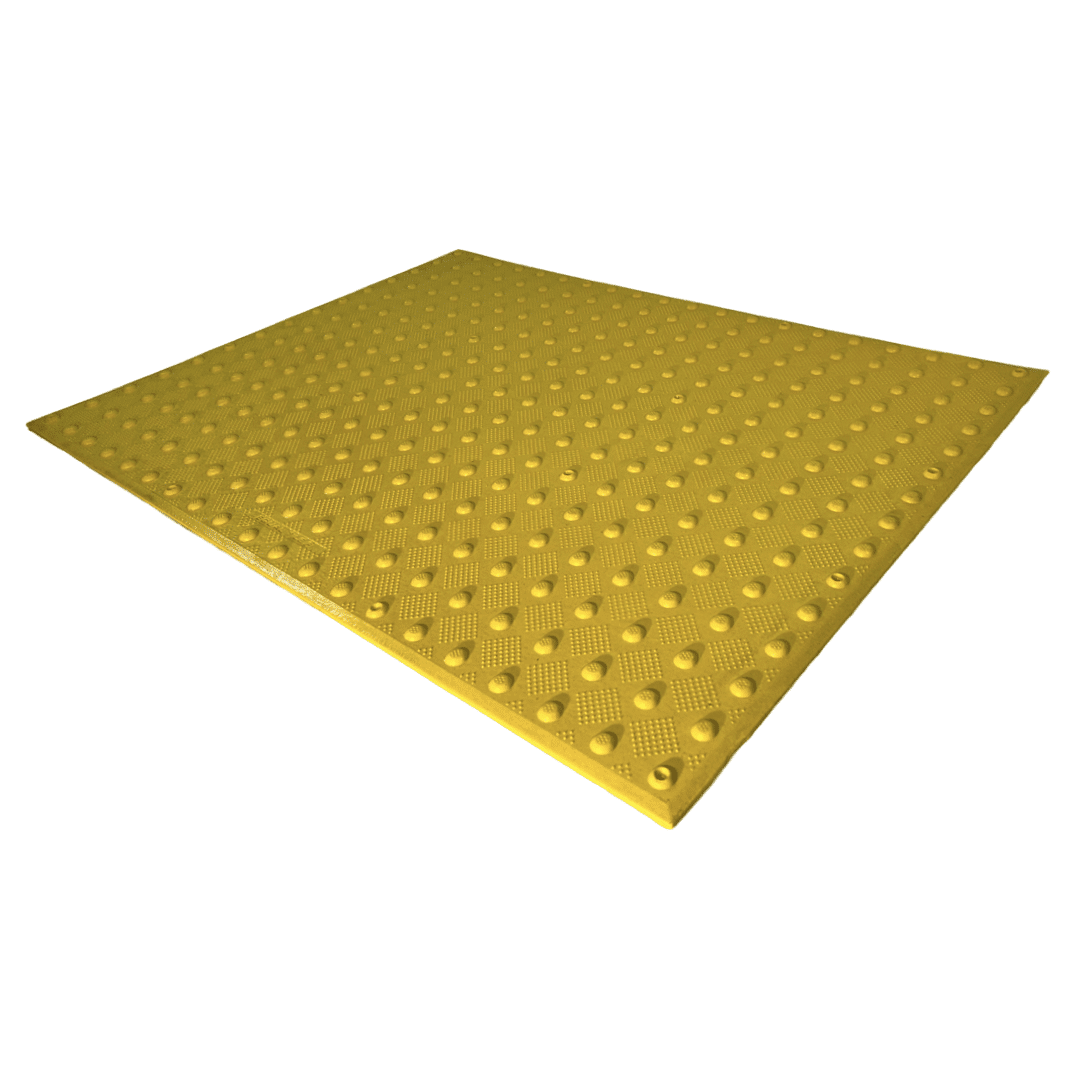

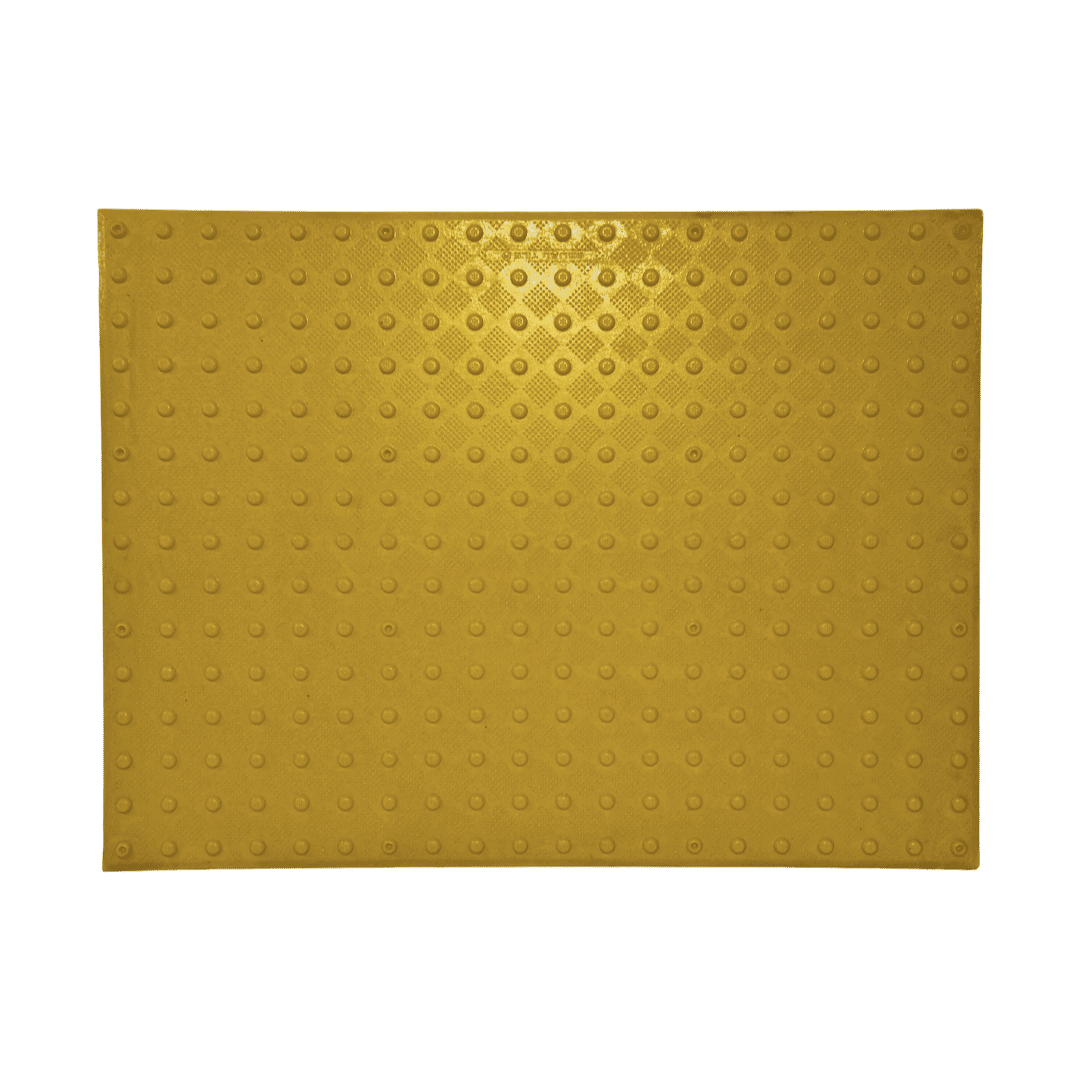

Surface Mount (Retro)

Our surface-mount detectable warning panels are the ideal solution for retrofitting existing concrete surfaces or new construction projects. Made from exterior-grade fiberglass polymer composite material, they offer durability and reliability.

Key features include:

  • Suitable for retrofit applications
  • Large perimeter beveled edges for smooth transitions
  • Secured with color-matched fasteners and structural adhesive
  • Surface-applied tactile tiles are 1/8″ thick with beveled edges
  • Available in standard sizes: 12” x 12”, 24” x 24”, 24″ x 36″, 24″ x 48″, 24″ x 60″, 36″ x 48″, and 36″ x 60″

Our Surface Mounts’ are available in a variety of approved colors.

(Custom colors available upon request)

Surface Mounts

Available in both Rectangular and Radius configurations, Surface Applied Tactile is made from a colorfast, UV-stable homogenous glass and carbon composite with fiberglass truncated domes for enhanced durability. It is designed to retrofit over an existing concrete substrate and can be installed in as little as 10 minutes with no advanced expertise required—simply follow the step-by-step directions.

Our cost-effective surface-mounted truncated domes provide safer walkways for pedestrians, including the visually impaired. These detectable warning surfaces require no expensive maintenance and are exceptionally durable, even in harsh weather conditions, ensuring they last for years.

All our truncated dome tactile surfaces comply fully with the American Disabilities Act Accessibility Guidelines (ADAAG), Public Right-of-Way (PROW), and California Title 24 Requirements.

Features and Advantages:

  • 0.1875” thick with beveled outer perimeter for safe transitions
  • Includes a 10oz. tube of Chemlink M1 Structural Adhesive
  • Includes nylon sleeve anchors and stainless-steel fasteners
  • Can be installed within 5 minutes
  • Available in a variety of colors

Applications: Municipal governments and local businesses across the country use surface-applied detectable warning surfaces to help people navigate sidewalks, ramps, entryways, pedestrian crossings, and transit platforms. These surface-applied ADA tiles ensure safety and accessibility, no matter the location or application. Each tactile system in our product line meets all local, state, and federal detectable warning surface requirements, so customers never have to worry about compliance issues.

Surface-applied truncated domes from ADA Solutions are perfect for retrofit projects. We build our slip-resistant detectable warning pavers with beveled edges for a smooth, safe transition. Choose between two different warning tile configurations—radius and rectangular. Color-matched fasteners and structural adhesives make installation of these surface-mounted truncated domes easy and secure.

For Quality Tactile Warning Surfaces, Choose ADA Solutions

ADA Solutions manufactures high-quality ADA tactile warning surfaces designed to improve pedestrian safety and facilitate access. Our line of flexible warning solutions can accommodate the diverse needs of public and private entities across the nation. Constructed from the sturdiest, most durable materials, our tactile indicators meet all official standards and exceed all expectations.

Product Specification

CIP Installation Instructions

Surface Mount (Retro)

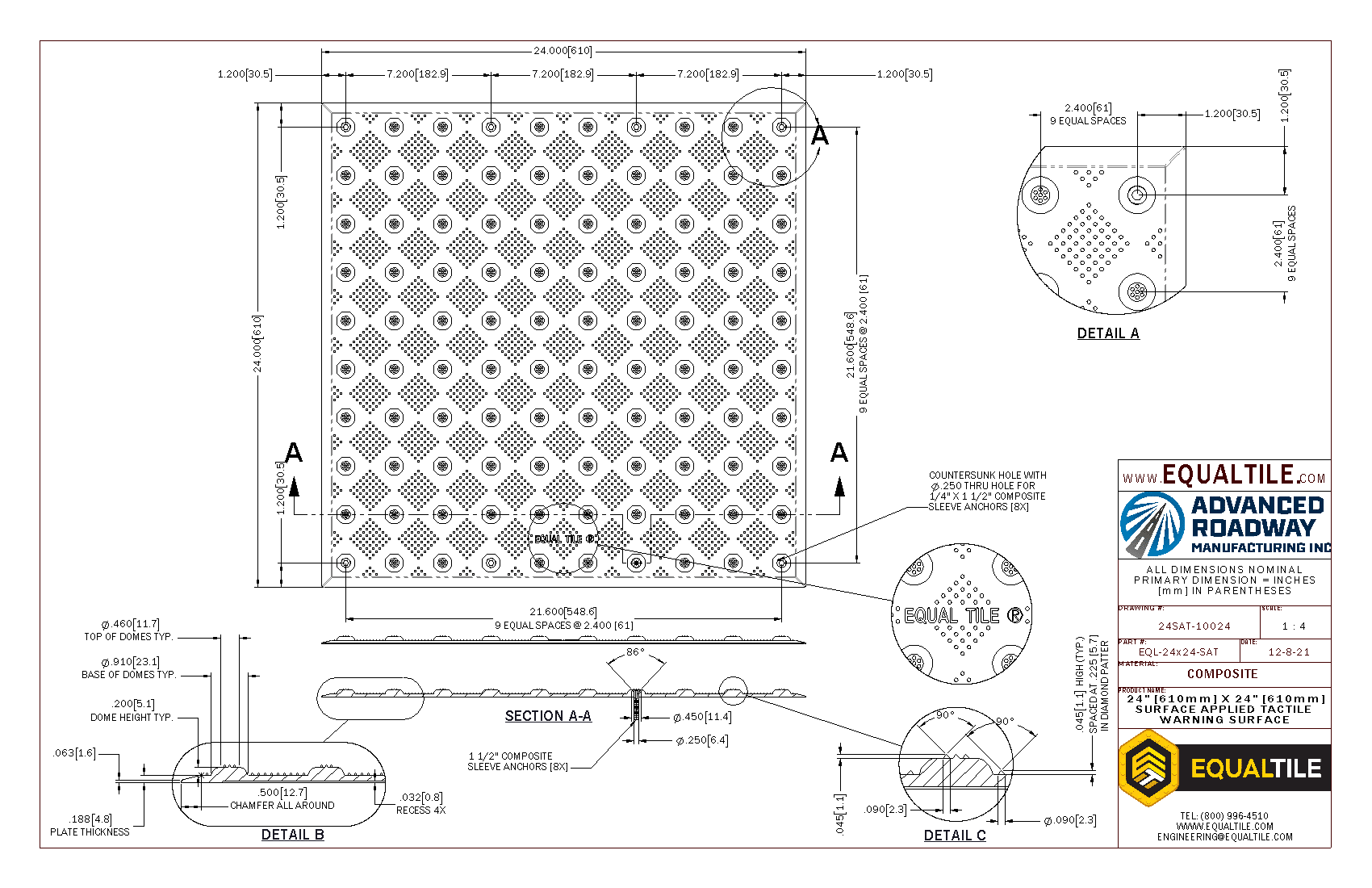

SURFACE MOUNT (RETRO) 2X2 PDF

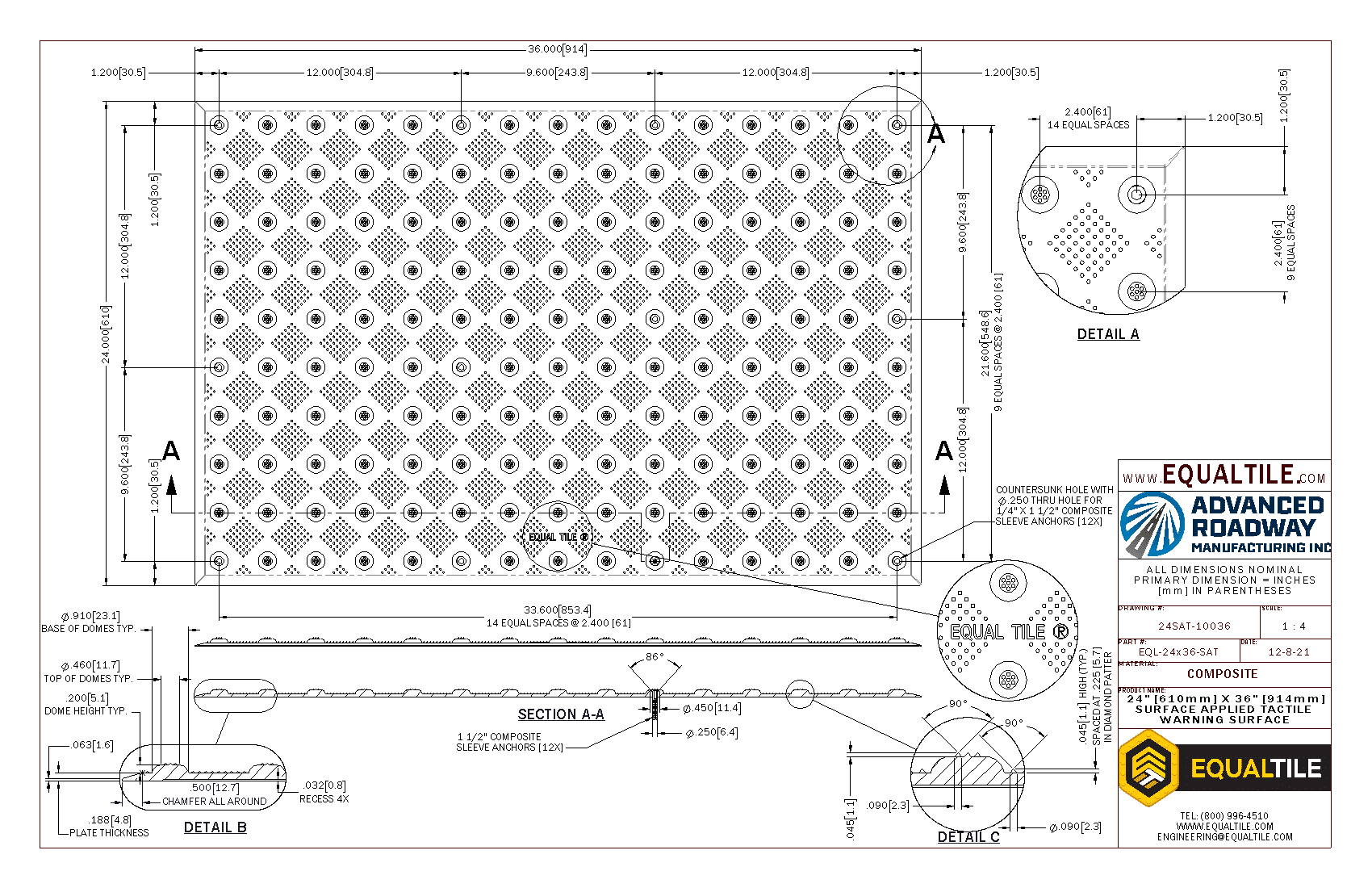

SURFACE MOUNT (RETRO) 2X3 PDF

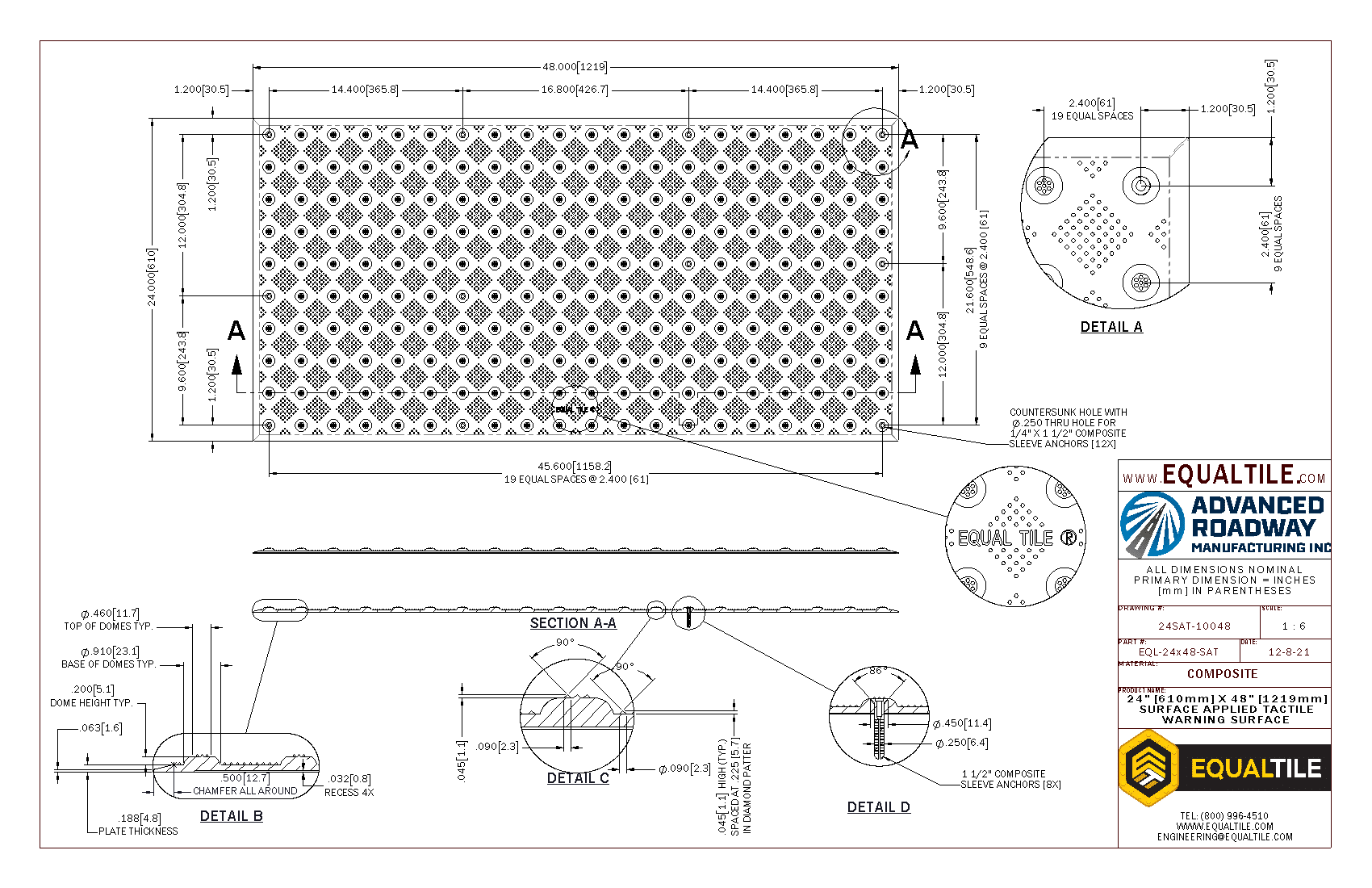

SURFACE MOUNT (RETRO) 2X4 PDF

SURFACE MOUNT (RETRO) 2X5 PDF

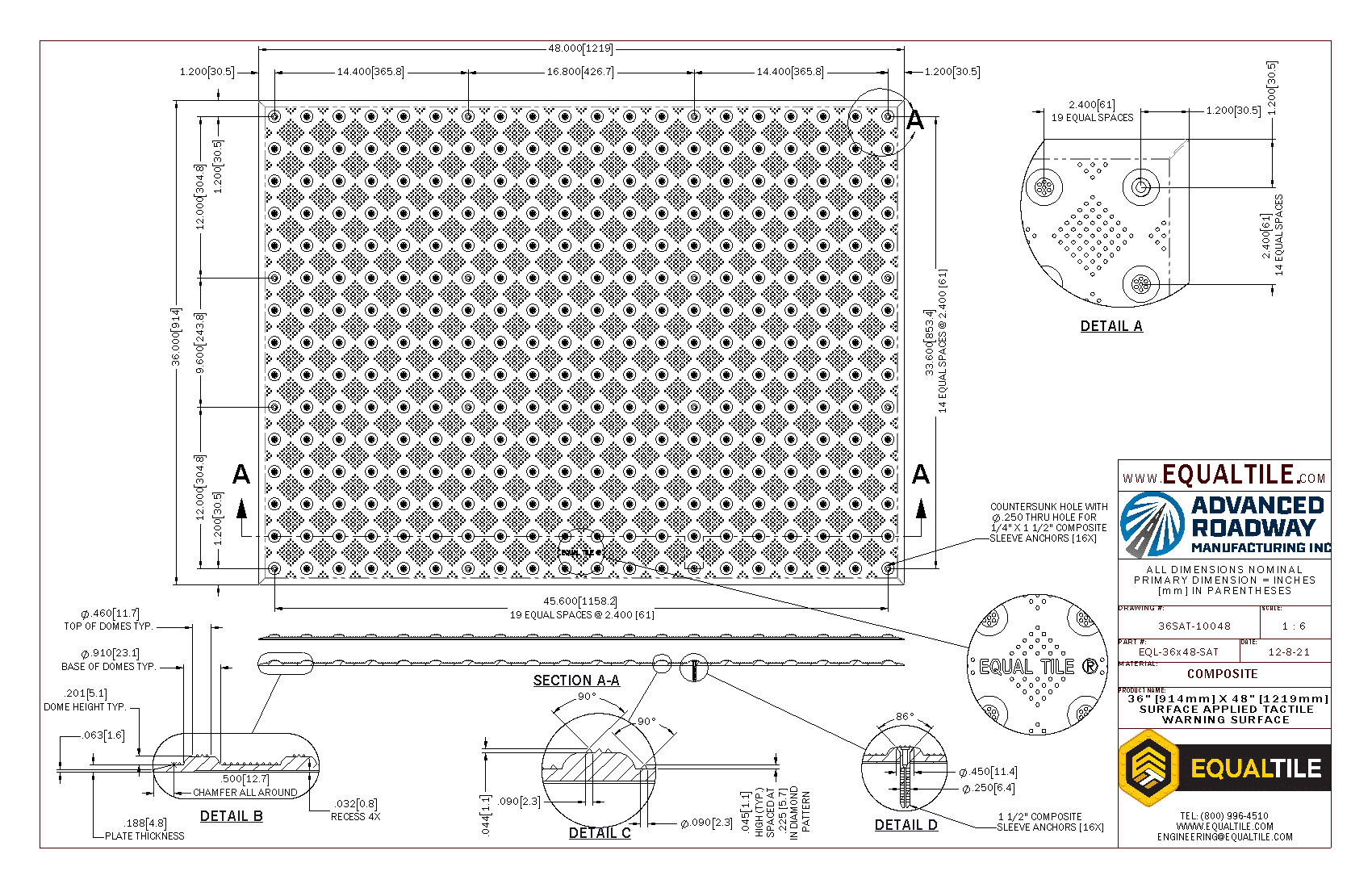

SURFACE MOUNT (RETRO) 3X4 PDF

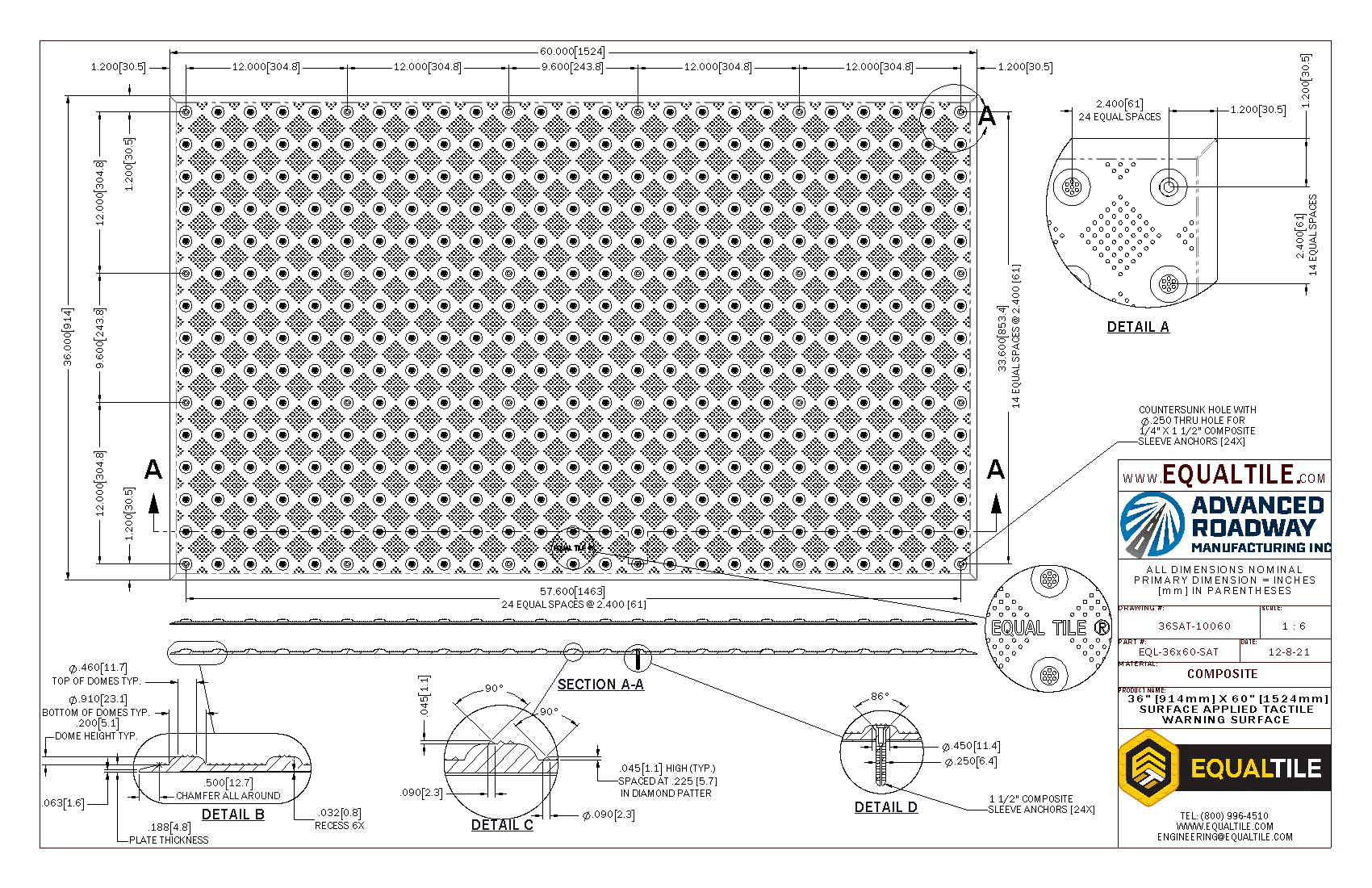

SURFACE MOUNT (RETRO) 3X5 PDF
